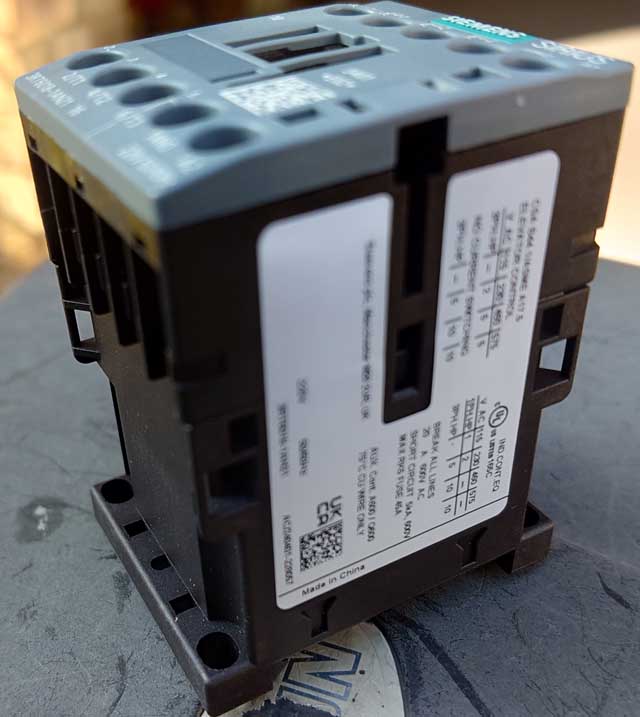

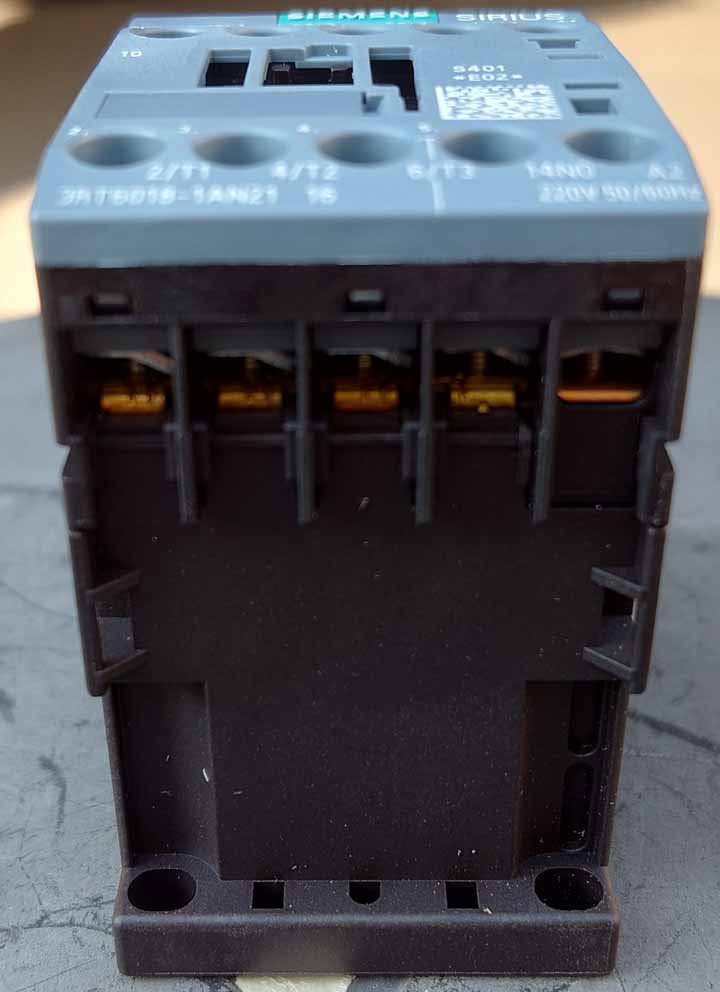

SIEMENS 3RT6018-1AN21 RELAY CONTACTOR 西門子接觸器 SIRIUS

SIEMENS 3RT6018-1AN21 RELAY CONTACTOR 接觸器

西門子 3RT6018

ELEVATOR CONTROL

220V 控制

16A / 400V 7.5KW

西門子交流接觸器作為執行元件，常常被用於接通、分斷線路或頻繁的控制電動機等設備運行。交流接觸器的主要結構分別是由動、靜主觸頭，滅弧罩，動、靜鐵芯，輔助觸頭和支架外殼等零部件組成。交流接觸器的作用是當電磁線圈通電後，使動鐵芯在電磁力作用下吸合，直接或通過杠杆傳動使動觸頭與靜觸頭接觸進而接通電路。電磁線圈斷電後，動鐵芯在復位彈簧作用下自動返回，俗稱釋放觸頭並且分開電路分斷。交流接觸器是電力拖動和自動控制系統中應用*普遍的一種低壓控制電器。

交流接觸器通常採用三種滅弧方式：雙斷電弧滅弧，縱向接縫滅弧和電弧滅弧。它用於消除在分裂和閉合過程中由移動和固定觸點產生的電弧。容量超過10A的接觸器具有滅弧裝置。交流接觸器還具有輔助部件，例如反作用彈簧，緩衝彈簧，接觸壓力彈簧，傳動機構，基座和端子。

西門子交流接觸器交流接觸器的工作原理：是利用電磁力與彈簧力配合，實現觸頭的接觸和斷開。

交流接觸器具有兩種操作狀態：斷電狀態（釋放狀態）和斷電狀態（動作狀態）。

當吸引線圈通電時，靜鐵芯產生電磁吸引，銜鐵被吸入，與銜鐵連接的連杆驅動觸頭作用，使常閉觸頭斷開接觸器處於通電狀態；

當吸引線圈斷電時，利用電磁吸引力消失的原理，可以將電樞重新打開，常開觸點閉合，位置彈簧鬆開，所有觸點復位，接觸器處於斷電狀態。

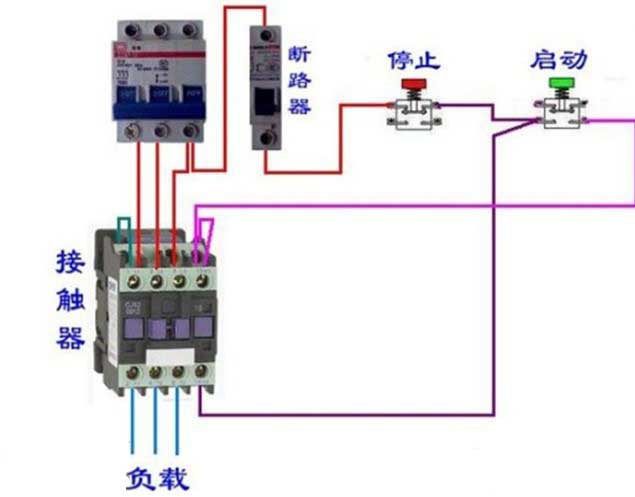

西門子交流接觸器交流接觸器作用原理與接線圖二
一般三相接觸器接線一共有8個點，三路輸入，三路輸出，還有是控制點兩個。

輸出和輸入是對應的，很容易能看出來。如果要加自鎖的話，則還需要從輸出點的一個端子將線接到控制點上面。首先應該知道交流接觸器的原理。它是用外界電源來加在線圈上，產生電磁場。加電吸合，斷電後接觸點就斷開。

知道原理後，應該弄清楚外加電源的接點，也就是線圈的兩個接點，一般在接觸器的下部，並且各在一邊。其他的幾路輸入和輸出一般在上部，一看就知道。還要注意外加電源的電壓是多少（220伏或380伏），一般都標得有。

並且注意接觸點是常閉還是常開。如果有自鎖控制，根據原理理一下線路就可以了。

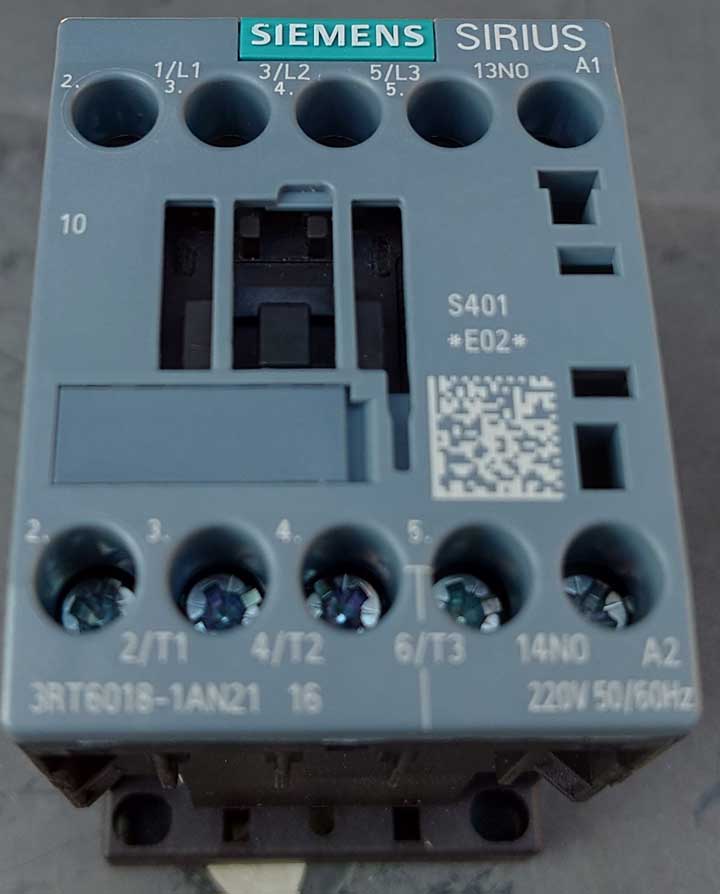

西門子交流接觸器交流接觸器接線參數：1、3、5接三相電源，（主電路部分）；2、4、6接三相電機。

A1、A2 是這個接觸器的線圈，接到控制電路裡面去，通過控制這個接觸器的接線線圈（A1、A2）來實現控制住電路部分的電機（以小控大）。

13、14表示這個接觸器的輔助觸點，NO表示為常開，也就是沒通電的情況下13、14是斷開的，通電後13、14是閉合的。放在控制電路部分用來自鎖（並聯在啟動按鈕上），達到連續運行的目的。

Technical data

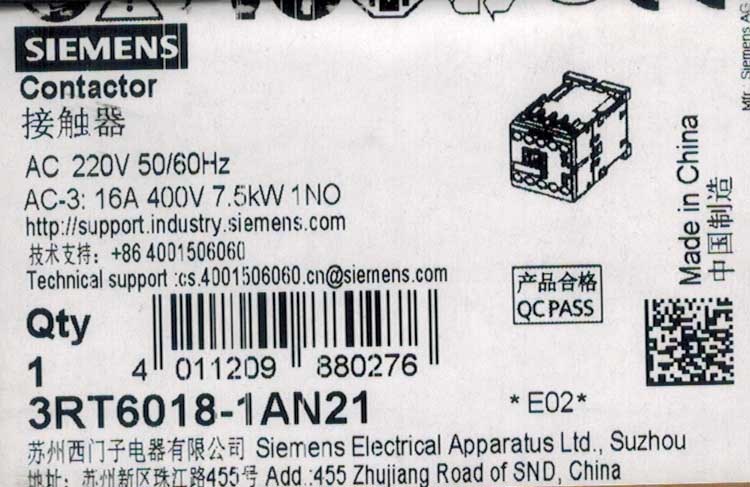

		Contactor AC 220 V 50/60 HZ AC3 7.5 kW 400 V AUX contacts 1 NO 3-pole, size S00 screw terminal
product brand name		SIRIUS
product designation		Power contactor
product type designation		3RT6
General technical data
size of contactor		S00
product extension auxiliary switch		Yes
power loss [W] for rated value of the current
● at AC in hot operating state per pole		2.2 W
● without load current share typical		1.42 W
type of calculation of power loss depending on pole		quadratic
insulation voltage rated value		690 V
degree of pollution		3
surge voltage resistance rated value		6 kV
maximum permissible voltage for protective separation between coil and main contacts according to EN 60947-1		400 V
shock resistance at rectangular impulse
● at AC		7,3g / 5 ms, 4,7g / 10 ms
shock resistance with sine pulse
● at AC		11,4g / 5 ms, 7,3g / 10 ms
mechanical service life (operating cycles)
● of contactor typical		30 000 000
● of the contactor with added auxiliary switch block typical		10 000 000
Substance Prohibitance (Date)		05/01/2012
Ambient conditions
installation altitude at height above sea level maximum		2 000 m
ambient temperature
● during operation		-25 … +60 °C
● during storage		-55 … +80 °C
Main circuit
number of poles for main current circuit		3
number of NO contacts for main contacts		3
number of NC contacts for main contacts		0
operating voltage
● at AC-3 rated value maximum		690 V
● at AC-3e rated value maximum		690 V
operational current
● at AC-1 up to 690 V
— at ambient temperature 40 °C rated value		22 A
— at ambient temperature 60 °C rated value		20 A
● at AC-3
— at 400 V rated value		16 A
— at 690 V rated value		8.9 A
● at AC-3e
— at 400 V rated value		16 A
— at 690 V rated value		8.9 A
connectable conductor cross-section in main circuit at AC-1
● at 60 °C minimum permissible		2.5 mm²
● at 40 °C minimum permissible		4 mm²
operational current for approx. 200000 operating cycles at AC-4
● at 400 V rated value		5.5 A
● at 690 V rated value		4.4 A
operating power
● at AC-1
— at 230 V rated value		7.5 kW
— at 230 V at 60 °C rated value		7.5 kW
— at 400 V at 60 °C rated value		13 kW
— at 690 V at 60 °C rated value		22 kW
● at AC-3
— at 230 V rated value		4 kW
— at 400 V rated value		7.5 kW
— at 690 V rated value		7.5 kW
● at AC-3e
— at 230 V rated value		4 kW
— at 400 V rated value		7.5 kW
— at 690 V rated value		7.5 kW
operating power for approx. 200000 operating cycles at AC-4
● at 400 V rated value		2.5 kW
● at 690 V rated value		3.5 kW
no-load switching frequency
● at AC		10 000 1/h
operating frequency
● at AC-1 maximum		1 000 1/h
● at AC-3 maximum		750 1/h
● at AC-3e maximum		750 1/h
● at AC-4 maximum		250 1/h
Control circuit/ Control
type of voltage of the control supply voltage		AC
control supply voltage at AC
● at 50 Hz rated value		220 V
● at 60 Hz rated value		220 V
operating range factor control supply voltage rated value of magnet coil at AC
● at 50 Hz		0.8 … 1.1
● at 60 Hz		0.85 … 1.1
apparent pick-up power of magnet coil at AC
● at 50 Hz		37 VA
● at 60 Hz		43 VA
inductive power factor with closing power of the coil
● at 50 Hz		0.8
● at 60 Hz		0.8
apparent holding power of magnet coil at AC
● at 50 Hz		5.7 VA
● at 60 Hz		6.5 VA
inductive power factor with the holding power of the coil
● at 50 Hz		0.25
● at 60 Hz		0.25
Auxiliary circuit
number of NC contacts for auxiliary contacts instantaneous contact		0
number of NO contacts for auxiliary contacts instantaneous contact		1
operational current at AC-12 maximum		10 A
operational current at AC-15
● at 230 V rated value		10 A
● at 400 V rated value		3 A
● at 690 V rated value		1 A
operational current at DC-12
● at 24 V rated value		6 A
● at 110 V rated value		3 A
● at 220 V rated value		1 A
operational current at DC-13
● at 24 V rated value		6 A
● at 110 V rated value		1 A
● at 220 V rated value		0.3 A
contact reliability of auxiliary contacts		1 faulty switching per 100 million (17 V, 1 mA)
UL/CSA ratings
yielded mechanical performance [hp] for 3-phase AC motor at 460/480 V rated value		10 hp
Short-circuit protection
design of the fuse link
● for short-circuit protection of the main circuit
— with type of coordination 1 required		gL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 35 A
— with type of assignment 2 required		gL/gG LV HRC 3NA, DIAZED 5SB, NEOZED 5SE: 20 A
● for short-circuit protection of the auxiliary switch required		fuse gL/gG: 10 A
Installation/ mounting/ dimensions
mounting position		+/-180° rotation possible on vertical mounting surface; can be tilted forward and backward by +/- 22.5° on vertical mounting surface
fastening method		screw and snap-on mounting onto 35 mm DIN rail according to DIN EN 50022
● side-by-side mounting		Yes
height		57.5 mm
width		45 mm
depth		73 mm
required spacing with side-by-side mounting at the side		0 mm
Connections/ Terminals
type of electrical connection
● for main current circuit		screw-type terminals
● for auxiliary and control circuit		screw-type terminals
type of connectable conductor cross-sections for main contacts
● solid or stranded		2x (0,5 … 1,5 mm²), 2x (0,75 … 2,5 mm²), 2x 4 mm²
● finely stranded with core end processing		2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²)
type of connectable conductor cross-sections
● for auxiliary contacts
— solid or stranded		2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²), 2x 4 mm²
— finely stranded with core end processing		2x (0.5 … 1.5 mm²), 2x (0.75 … 2.5 mm²)
● for AWG cables for auxiliary contacts		2x (20 … 16), 2x (18 … 14), 2x 12
